EXPLOSION PROOF ZERON
EXPLOSION PROOF ZERON

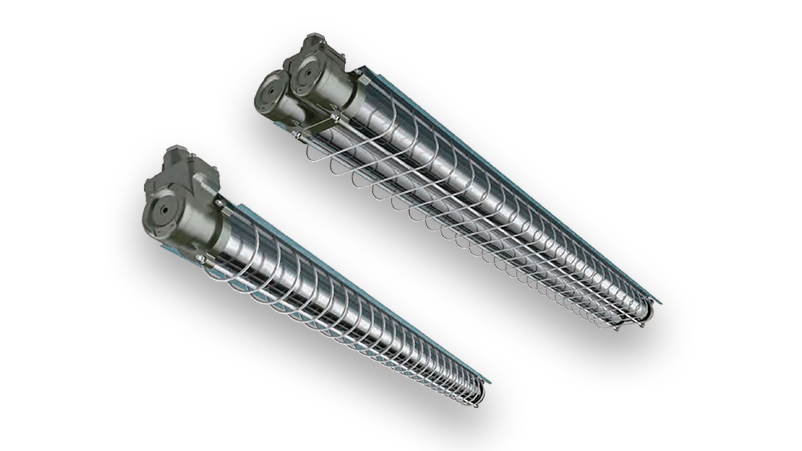

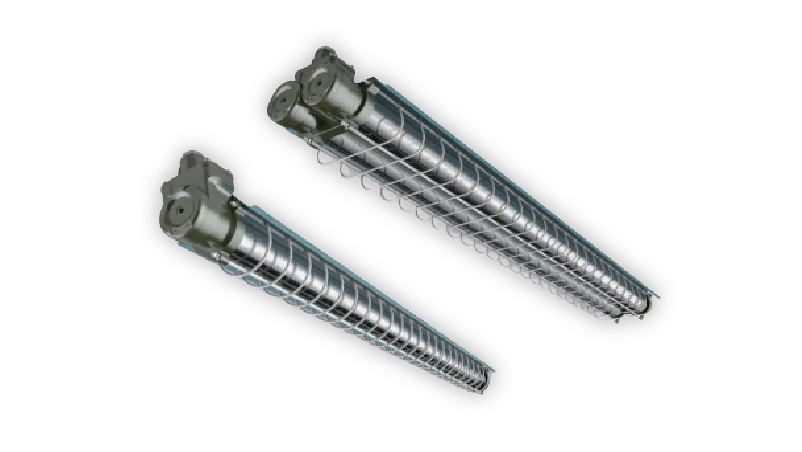

OHBF51S & OHBF51D
Product information
- Category: EXPLOSION PROOF
- Product Code: OHBF51S & OHBF51D
- Brand: ZERON
- Catalogue URL: Download
Product Specifications
| Model | OHBF51S & OHBF51D |
| Executive Standard | GB3836.1, GB3836.2, |
| Rated Power | 1X18W/2X18W |
| Rated Voltage | AC220V 50/60Hz |
| Weight | 3.8Kg/5.8Kg |

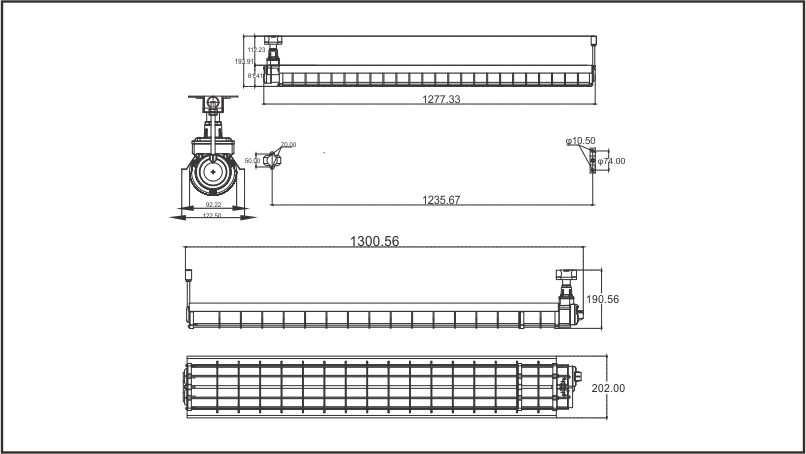

| Size | 1280X123X146MM/1300X202X146MM |
| Color Rendering | ≥75Ra |
| Power Factor | >0.9 |
| Emergency Time | 90-180 Min |
| Protection Level | IP 66 |
| Anticorrosion Grade | WF2 |
| Light Effect | 120LM/W (200LM/W Optional) |
| Introduction Device | G3/4" Ф8MM-Ф14MM |
| Explosion Proof Mark | Ex d llC T6 Gb/Ex TD A21 T80°C |
